Kia EV6

Open

Range & Specifications

 *Please note: Model Year 2025 EV6 will undergo all necessary inspections when available. Until inspections are complete, all information, specifications and illustrations are based on data available at the time of publication and subject to change without notice.

Light

84.0kWh Long Range
RWD

$83,070 +ORC

Earth

84.0kWh Long Range
AWD

$103,070 +ORC

GT-Line

84.0kWh Long Range
AWD

$115,070 +ORC

Light

84.0kWh Long Range
RWD
$83,070 +ORC

Earth

84.0kWh Long Range
AWD
$103,070 +ORC

GT-Line

84.0kWh Long Range
AWD
$115,070 +ORC

Electric Motor Type
Permanent Magnet Synchronous Motor (PMSM)
Permanent Magnet Synchronous Motor (PMSM)
Permanent Magnet Synchronous Motor (PMSM)

Battery Type
Lithium-Ion Polymer
Lithium-Ion
Lithium-Ion

Battery Capacity
84.0 kWh
84.0 kWh
84.0 kWh

Maximum Available Power
168 kW
239 kW
239 kW

Maximum Available Torque
350 Nm
605 Nm
605 Nm

Combined Energy Efficiency

15.9 kWh / 100km
17.0 kWh / 100km
17.70 kWh / 100km

CO₂ Emissions
0 g / km
0 g / km
0 g / km

Maximum Range - WLTP Combined*

528 km

Figures shown are calculated using the World Harmonised Light Vehicle Test Procedure (WLTP) and are stated for comparative purposes. Actual results achieved will differ according to operating conditions and driving style.

546 km

Figures shown are calculated using the World Harmonised Light Vehicle Test Procedure (WLTP) and are stated for comparative purposes. Actual results achieved will differ according to operating conditions and driving style.

522 km

Figures shown are calculated using the World Harmonised Light Vehicle Test Procedure (WLTP) and are stated for comparative purposes. Actual results achieved will differ according to operating conditions and driving style.

Maximum Speed
186 km / h
188 km / h
188 km / h

0 - 100 km/h
7.7 sec
5.3 sec
5.3 sec

Gearbox
Single speed reduction gear
Single speed reduction gear
Single speed reduction gear

Final Gear Ratio (Constant)
10.65
10.65
10.65

Shift Controller Type
E-Shift Dial (Shift-By-Wire)
E-Shift Dial (Shift-By-Wire)
E-Shift Dial (Shift-By-Wire)

Drivetrain
Rear Wheel Drive (RWD)
All Wheel Drive (AWD)
All Wheel Drive (AWD)

On board charger - Maximum Power
10.5 kW
10.5 kW
10.5 kW

AC Charge with ICCB up to 100% (230V / 12A)
Est. 34 h 40 min
Est. 34 h 40 min
Est. 34 h 40 min

AC Charge 10% to 100% (11kW WallBox Charger)
Est. 7 h 35 min
Est. 7 h 35 min
Est. 7 h 35 min

DC Charge 10% to 80% (50kW Charger)
Est. 81 min
Est. 81 min
Est. 81 min

DC Hyper Charge 10% to 80% (240kW Max DC Charge Rate)
Est. 18 min
Est. 18 min
Est. 18 min

Charging cable with ICCB (In-Cable Control Box) included - for home charging
●
●
●

Type 2 to Type 2 Mennekes Cable Included - for AC public charging
●
●
●

Front Suspension
McPherson Strut + Single Lower Arm Type
McPherson Strut + Single Lower Arm Type
McPherson Strut + Single Lower Arm Type

Rear Suspension
Multi-Link (5-link)
Multi-Link (5-link)
Multi-Link (5-link)

Tyres / Wheels
235 / 55R19
235 / 55 R19
255 / 45 R20

Wheel size / type

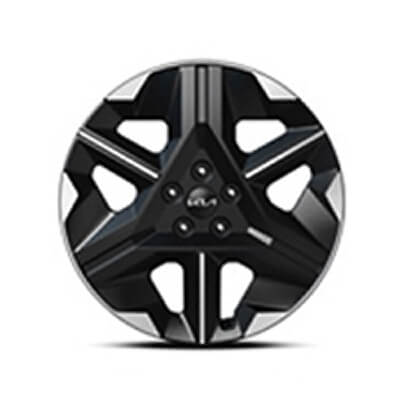

19" Alloy
19 inch alloy wheel Air and Earth models

19" Alloy
19 inch alloy wheel Air and Earth models

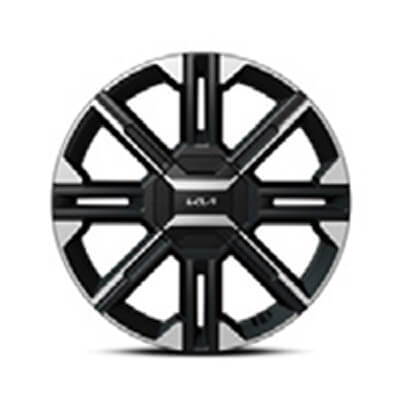

20" Alloy
20 inch alloy wheel GT Line model

Tyre Pressure Monitoring System (TPMS)
●
●
●

Spare wheel type
Tyre Mobility Kit (TMK)
Tyre Mobility Kit (TMK)
Tyre Mobility Kit (TMK)

Braking System
325mm Ventilated Front Discs, 325mm Solid Rear Discs
325mm Ventilated Front Discs, 325mm Solid Rear Discs
325mm Ventilated Front Discs, 325mm Solid Rear Discs

Electronic Parking Brake with Auto Hold
●
●
●

Steering System
Rack-mounted Motor Driven Power Steering (R-MDPS)
Rack-mounted Motor Driven Power Steering (R-MDPS)
Rack-mounted Motor Driven Power Steering (R-MDPS)

Drive Mode Select System
●
●
●

Minimum Turning Radius
5.81 m
5.81 m
5.81 m

Steering Wheel Turn (Lock to Lock)
2.67
2.67
2.67

Steering Wheel Adjustment
Tilt and Telescopic
Tilt and Telescopic
Tilt and Telescopic

Safety Rating
ANCAP Rating - Pending Final Confirmation
ANCAP Rating - Pending Final Confirmation
ANCAP Rating - Pending Final Confirmation

Anti-Lock Braking System (ABS)
●
●
●

Electronic Stability Control (ESC) & Vehicle Stability Management (VSM)
●
●
●

Multi-Collision Brake System (MCB)
●
●
●

Hill-Start Assist Control (HAC)
●
●
●

Forward Collision Avoidance Assist (FCA) - Car / Pedestrian / Cyclist / Junction Turning
●
●
●

Lane Keep Assist System (LKA)
●
●
●

Lane Follow Assist System (LFA)

●
●
●

Driver In Cabin Status Monitor - Camera Type
●
●
●

Blind Spot Collision Avoidance Assist - Rear (BCA)
●
●
●

Rear Cross Traffic Collision Avoidance Assist (RCCA)
●
●
●

Parking Collision Avoidance Assist (PCA) - Reverse, Forward & Side
-
●
●

Blind Spot View Monitor (BVM)
-
●
●

Smart Cruise Control (SCC) with Stop & Go
●
●
●

Intelligent Speed Limit Assist (ISLA)
●
●
●

Manual Speed Limit Assist (MSLA)
●
●
●

e-Call (SOS Call)
●
●
●

Driver & Front Passenger Airbags
●
●
●

Front Centre-Side Airbag
●
●
●

Front Side Airbags
●
●
●

Curtain Airbags (1st & 2nd Rows)
●
●
●

Front Seatbelt Pretensioners / Load Limiters
●
●
●

Height Adjustable Front Seatbelts
●
●
●

3 Point ELR Seatbelts (All Seats)
●
●
●

Seatbelt Reminders (All Seats)
●
●
●

Rear Seat Occupant Alert - Basic Type
●
●
●

Safe Exit Warning (SEW) - TBC
●
●
●

Safe Exit Assist (SEA) - Warning / Locking -TBC
-
●
●

ISOFIX Child Seat Anchor Points (2x 2nd Row)
●
●
●

Top Tether Child Seat Anchor Points (3x 2nd Row)
●
●
●

Power Child Safety Lock (Auto)
-
●
●

Speed Sensing Auto Door Lock
●
●
●

Remote Smart Park Assist 2 (RSPA 2)
-
●
●

Parking Sensors
Front & Rear
Front / Rear / Side
Front / Rear / Side

Rear View Monitor with Dynamic Guidelines
●
-
-

Surround View Monitor (SVM) with Dynamic Guidelines
-
●
●

Standard LED Headlights
●
●
-

Premium LED Headlights with Adaptive Driving Beam
-
-
●

LED Daytime Running Lights
●
●
●

Rear LED Fog Lamp
●
●
●

LED Rear Combination Lights
●
●
●

Auto Flush Outside Door Handle - Body Colour
●
●
●

Side Mirrors
Electrically adjustable, heated and folding with LED side indicators and high glossy cover
Electrically adjustable, heated and folding with LED side indicators and high glossy cover
Electrically adjustable, heated and folding with LED side indicators and high glossy cover

Solar & Acoustic Windshield with Solar Front Door Glass
●
●
●

Auto Light Control (Dusk Sensing)
●
●
●

Rear Spoiler with LED Stop Light
●
●
●

Privacy Glass (Rear Windows & Tailgate)
●
●
●

Aeroblade Front Wipers
●
●
●

GT-Line Exterior Styling
-
-
●

Door Garnish
Non-Painted
Black Paint
Body Colour

Glossy Black Window Beltline
●
●
●

Tilting & Sliding Wide Power Sunroof (with One Touch Safety)
-
-
Optional

Seating Configuration
5 Seats
5 Seats
5 Seats

Interior Seat Trim
Cloth & Composite Leather
Composite Leather
Suede & Composite Leather

Premium Relaxation Seat Function
Driver only
Drive & Front Passenger
Driver only

Driver & Front Passenger’s Seat Height Adjuster
●
●
●

Driver’s Power Adjustable Memory Seat with Lumbar support
●
●
●

Front Passenger’s Power Adjustable Seat with Lumbar support
-
●
●

Height Adjustable Headrests with Driver & Passenger Up / Down & Sliding
●
●
●

Heated (3-Step) Front Seats
●
●
●

Ventilated Front Seats
-
-
●

Remote Folding 2nd Row Seats
●
●
●

2-Spoke Composite Leather Steering Wheel with Paddle Shifters
●
●
●

GT-Line exclusive 3-Spoke Composite Leather Sport Steering Wheel Paddle Shifters
-
-
●

Active Sound Design (ASD)
-
-
●

Heated Steering Wheel
●
●
●

Aluminium Sports Pedals
-
-
●

Metal Paint Inside Door Handle
●
●
●

60:40 Split Folding Rear Seat
●
●
●

Rear Seat Centre Armrest with Cup Holder
●
●
●

Driver & Front Passenger’s Seat Back Panel with Pocket
●
●
●

LED Front Overhead Console Lamp & 2nd Row Lamps
●
●
●

LED Rear Cargo Lamp
●
●
●

LED Front Trunk (Frunk) Lamp
●
●
●

Luggage Screen
●
●
●

Luggage Net Hook
●
●
●

Under Floor Storage Box
●
●
●

12.3” Colour TFT-LCD Digital Instrument Cluster
●
●
●

12.3” Satellite Navigation System
●
●
●

Kia Connect - Connected Car Service (CCS) & Over-The-Air (OTA) Updates
●
●
●

Apple CarPlayTM ∞ with Voice Recognition
●
●
●

Android AutoTM † with Voice Recognition
●
●
●

Bluetooth® Multi-connection functionality
●
●
●

6 Speaker Audio System
●
●
-

14 Speaker Meridian® Premium Sound System
-
-
●

Wireless Phone Charger
●
●
●

2x 12v Power Outlets (1x Behind Centre Console & 1x Cargo Area)
●
●
●

1st Row USB charger (1x Front Console)
●
●
●

2nd Row USB chargers (2x behind 1st row seats)
●
●
●

Head-up Display (Windshield-type)
-
●
●

Steering Wheel Mounted Audio & Cruise Controls
●
●
●

V2L - Vehicle to Load Interior 3-Pin NZ Type Socket (Lower of 2nd Row Seat)
●
●
●

V2L - Vehicle to Load Exterior Adaptor (Type2 to 3-Pin NZ Type Socket)
-
-
●

Dual Zone Automatic Climate Control
●
●
●

Auto Window Defog System
●
●
●

Smart Key with Interior Vehicle Start / Stop Button
●
●
●

Immobilizer
●
●
●

Remote Central Locking
●
●
●

Rain Sensing Front Wipers
●
●
●

Front & Rear Power Window
●
●
●

Front Windows with Auto Up / Down Safety Function
●
●
●

Electrochromic Rear View Mirrow (ECM)
●
●
●

Power Tailgate (Height Adjustable)
●
-
●

Sliding-Type Sun Visors with Illuminated Vanity Mirrors
●
●
●

Heat Pump System
-
-
●

Overall Length (mm)
4,695 mm
4,695 mm
4,695 mm

Overall Width (mm)
1,880 mm
1,880 mm
1,890 mm

Overall Height (mm)
1,550 mm
1,550 mm
1,550 mm

Wheelbase (mm)
2,900 mm
2,900 mm
2,900 mm

Minimum Ground Clearance (mm)
160 mm
160 mm
160 mm

Tare Weight (kg)
2,055 kg
2,155 kg
2,165 kg

Luggage Capacity - Rear Seats Up / Down (VDA)
520 L / 1,290 L
520 L / 1,290 L
480 L / 1,250 L

Towing Capacity - braked / unbraked (kg)
1,800 kg / 750 kg
1,800 kg / 750 kg
1,800 kg / 750 kg

Max. towball download (kg)
100kg
100kg
100kg
Complete detailed specifications are available in our brochure
Download brochure

Not all features are available on all models, for full details of model specification please see the Range and Specifications page
